HS Magnetic Zipline Trolley

Integrated magnetic braking and quieter polyurethane wheels for steep commercial zipline applications.

The Zip-Rush HS Magnetic Trolley combines a heavy-duty trolley platform with a powerful, adjustable eddy-current brake. Developed primarily for steep, high-gradient zipline installations, it helps reduce rider speed without contact-based braking friction at the cable, supporting lower heat, wear, and maintenance demands. Its polyurethane wheels significantly reduce rolling noise and vibration while helping limit cable wear, creating a smoother, quieter rider experience.

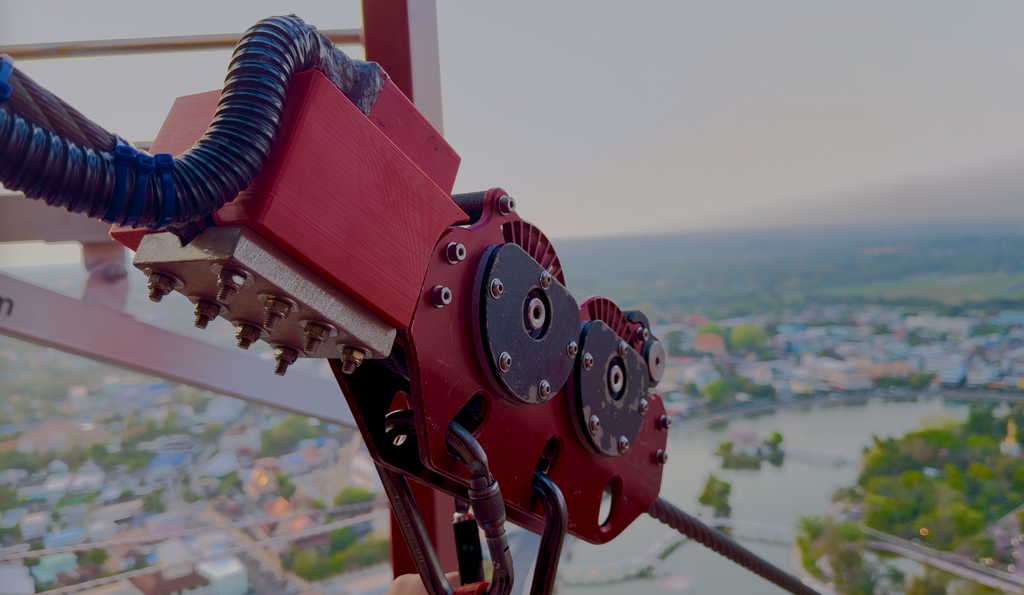

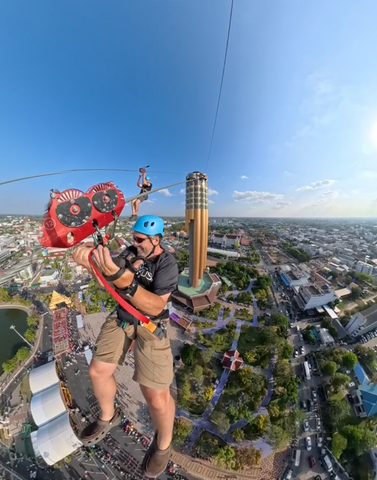

Proven on the Roi-Et tower zipline

The HS Magnetic Trolley is used on the Roi-Et application, where the zipline reaches a maximum slope of 56%. This real-world installation demonstrates the trolley’s role in managing speed on an exceptionally steep commercial line while maintaining smooth, controlled operation.

Choose your magnetic configuration

• 50% Magnetic: Partial magnetic braking for applications requiring moderate speed control.
• Full Magnetic: Maximum magnetic braking within the HS Magnetic range.

Configuration review required: The correct magnetic setup depends on rider weight, cable slope, line length, cable diameter, and target arrival speed. Contact Zip-Rush before ordering so the trolley can be matched to your installation.

Key features

• Integrated, fully adjustable eddy-current brake
• Polyurethane wheels significantly reduce noise, vibration, and cable wear
• Designed primarily for steep and high-gradient commercial zipline applications
• Proven on the Roi-Et application with a maximum slope of 56%
• Rated to 5,000 lb
• Replaceable rubber liners
• Custom wheels for cable diameters up to 19 mm (3/4 in.)
• Heavy-duty construction for commercial operation

How magnetic braking works

Eddy-current braking slows the trolley through magnetic resistance rather than a friction brake acting directly on the cable. This provides smooth, progressive speed control while helping reduce cable wear and braking-system maintenance.

Ordering

Minimum order: 10 trolleys.

HS Magnetic trolleys are configured for the requirements of each line. Contact us for a configuration review, current lead time, and a custom shipping quote. Shipping is not included in the listed price.

Questions about the HS Magnetic trolley or your zipline setup? Ask a Zipline Expert.
